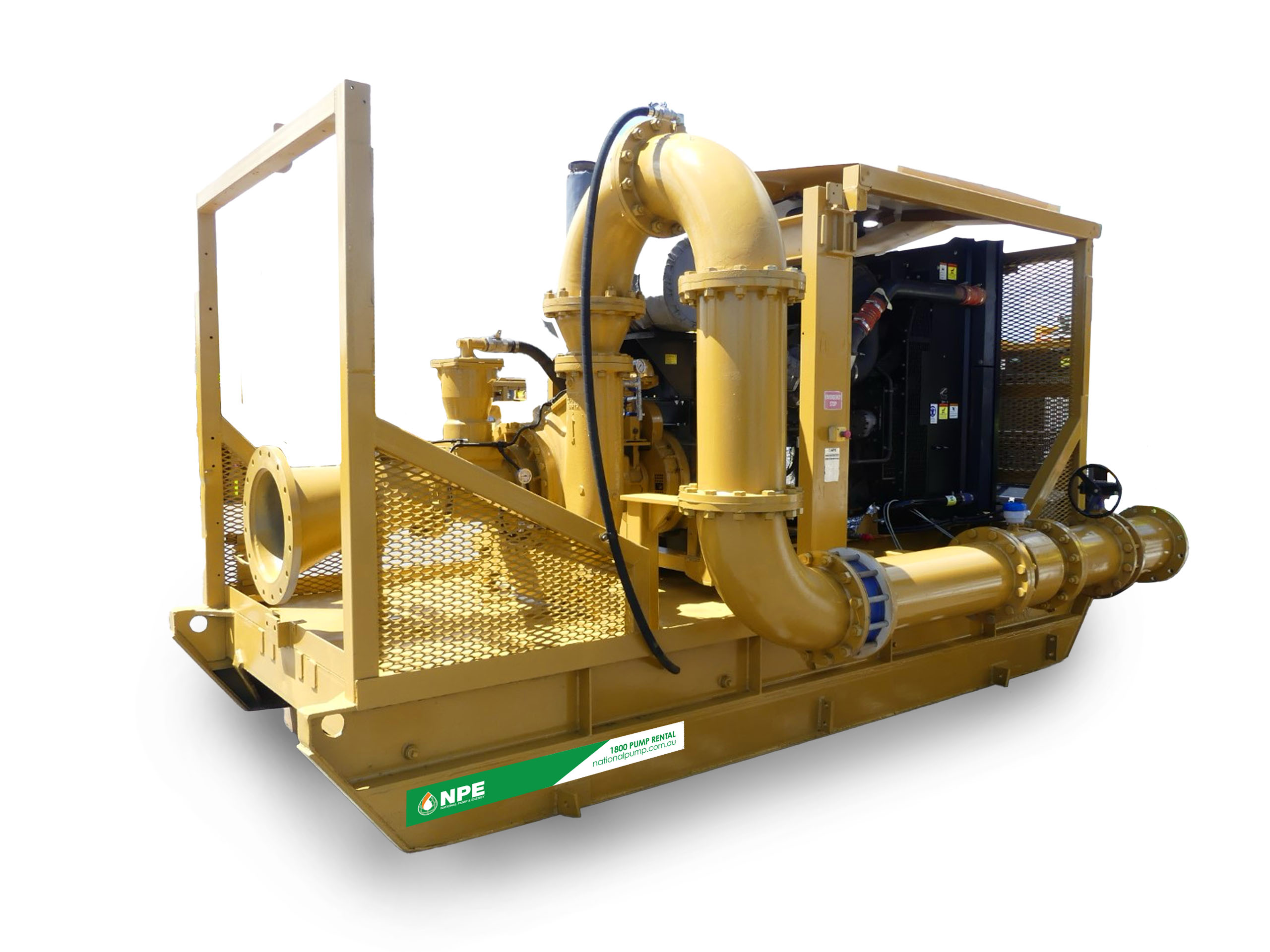

350-100-600HP 8NHT Diesel Electric Driven Self-Priming Dewatering Pump Cornell

350-100-600HP 8NHT Diesel Electric Driven Self-Priming Dewatering Pump Cornell

FLOW RATE
480L/S

Max Head (m)
100

Solid Handling (mm)
102

Download Spec Sheet

Patented Cycloseal® design is standard, with a Type 1 or 2 single mechanical seal with Buna-N elastomers, stainless steel hardware and tungsten carbide vs. silicon carbide seal faces for abrasion resistance.

KEY FEATURES
  • Cycloseal sealing system
  • Robust construction
  • High efficiency hydraulics
  • Oversize shaft and bearings
  • Optional Redi-Prime Priming system

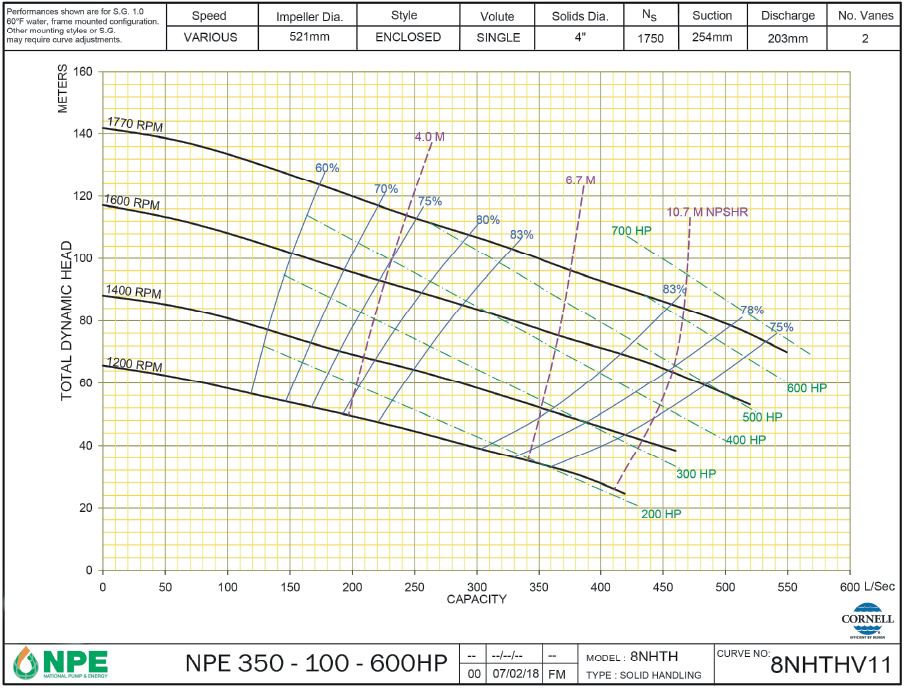

PUMP PERFORMANCE CURVE
ENGINE SPECIFICATIONS
EngineCummins QSX15
PUMP SPECIFICATIONS
Min. Flow230 L/S
Max. Flow480L/S
Discharge Size254mm
Suction Size203mm
Solids Handling102mm
Max. Speed1770RPM
Shut-off Head142m
BEP Head100m
BEP Flow350L/S
BEP Efficiency83%
MATERIALS OF CONSTRUCTION
Wear RingCast Iron
ImpellerCA6NM
VoluteDuctile Iron
Shaft4140 Tool Steel
Shaft Sleeve416 Stainless Steel
Suction CoverDuctile Iron
Mechanical SealTungsten Carbide vs. Silicon Carbide
Bearing FrameCast Iron
