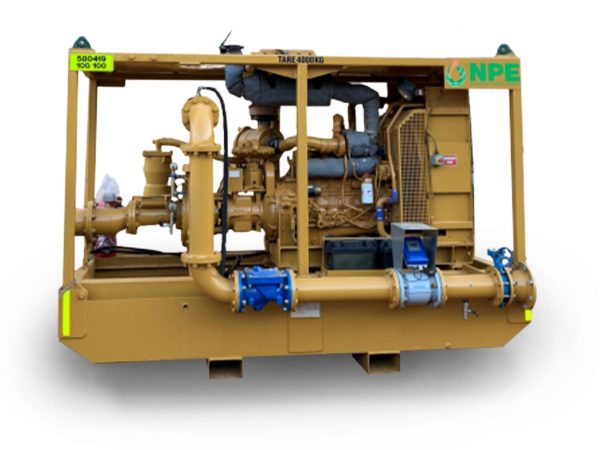

100-100-250HP Diesel/Electric Driving Self-Priming Dewatering Pump Cornell

100-100-250HP Diesel/Electric Driving Self-Priming Dewatering Pump Cornell

FLOW RATE
124L/S

Max Head (m)
120

Solid Handling (mm)
76

Download Spec Sheet

The Cornell 100-100-250 is a robust, reliable and high performance pumping solution capable of handling the harshest of conditions with ease. Renowned for its durability and performance, the Cornell 100-100-250 is the right choice when you need a solution that will deliver day-in and day-out.

KEY FEATURES
  • Excellent NPSHr
  • Industry-leading efficiencies
  • Variable speed
  • Patented Cycloseal® design
  • Heavy-duty construction
  • RunDry™ option (Indefinite run dry capability)
  • Redi-Prime® available for fully-automatic continuous priming
PUMP PERFORMANCE CURVE
ENGINE SPECIFICATIONS
EngineCummins QSB6.7
PUMP SPECIFICATIONS
PumpCornell 4NHTB
Min. Flow30 L/s
Max. Flow124 L/s
Discharge Size102mm
Suction Size127mm
Solids Handling76mm
Max. Speed2000 rpm
Shut-off Head144 m
BEP Head120 m
BEP Flow33 L/s
BEP Efficiency70%
MATERIALS OF CONSTRUCTION
Wear RingCast Iron
ImpellerCA6NM
VoluteDuctile Iron
Shaft17-4 Ph Stainless Steel
Shaft Sleeve416 Stainless Steel
BackplateDuctile iron
Mechanical SealTungsten Carbide vs. Silicon Carbide
O-RingsBuna-N, Nitrile
Bearing FrameCast Iron
