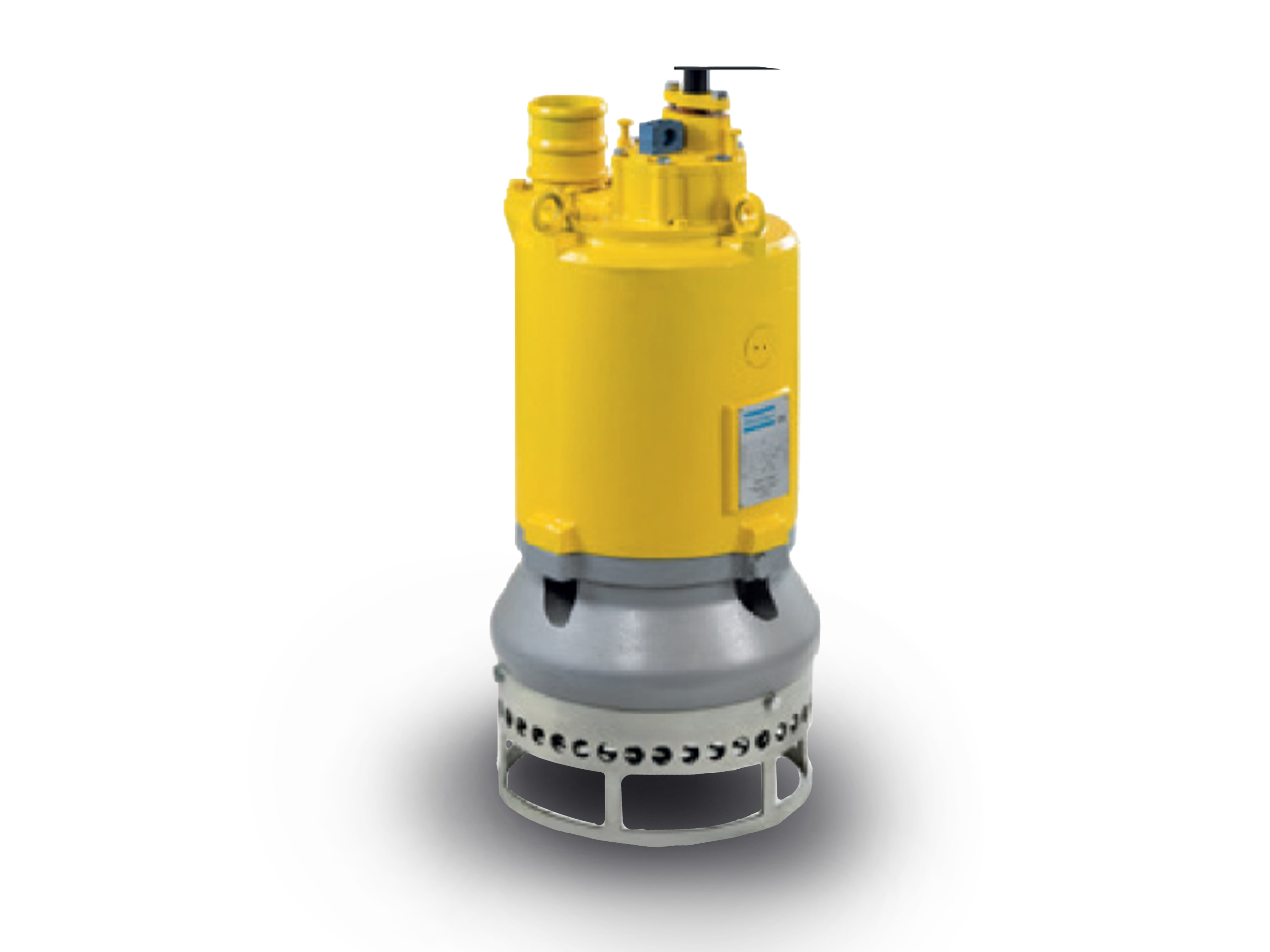

WEDA L80N Submersible Pump Atlas Copco
The WEDA slurry pumps are the toughest and have the largest apertures to facilitate handling of slurry with the most challenging solids. These pumps are specially designed to operate in quarries, dredging and settling ponds, dealing with abrasive media with high solids content.
| Pump Specification Data | |
|---|---|
| Installation | Portable |
| Discharge Connection | DN100/ASME 4 in/DIN |
| Hydraulic Range | N - normal head |
| Solid Handling | Max. solids 25 mm 1 in |
| Liquid Temperature | max 35°C (95°F) , standard |
| pH of the Pumped Liquid | 4-10 |
| Number of poles | 4 |
| Insulation Class | H |
| Protection Class | IP68 |
| Thermal Contacts | 110°C (230°F) |
| Cable | H07RN-F 4G10/SOOW 4xAWG6 |
| Cable Length | 20 m (65 ft) |
| Outer Casing | CI Alloy |
| Impeller | Cr Alloy CI |
| Wear Parts | Cr Alloy CI |
| Stator Housing | CI Alloy |
| Strainer | Steel |
| Shaft | Stainless Steel |
| O-rings | Viton |
| Discharge Connection | Steel |
| Bearings | Heavy Duty Bearings |
| Motor Side Seals | 1 mechanical seal (silicon carbide in oil bath) |
| Impeller Side Seals | 1 mechanical seal (silicon carbide in oil bath) + 4 lip seal (2 BUNA + 2 TPU) |
| Discharge | Flange |
| Start Type | Direct-on-line |
| Pump Dimensions | |
|---|---|
| Weight (Excl. Cable) | 310KG |
| Height | 1080mm |
| Width | 580mm |
| Diameter | 495mm |
| Power Rating | 3pH |
|---|---|
| Power P1 | 16.1kW |
| Power P2 | 15kW |
| 230V | 50.6A |
| 400V | 29.1A |
| Shaft Speed | 1450RPM |
