| Pump Specification Data | WEDA D50 |
|---|---|

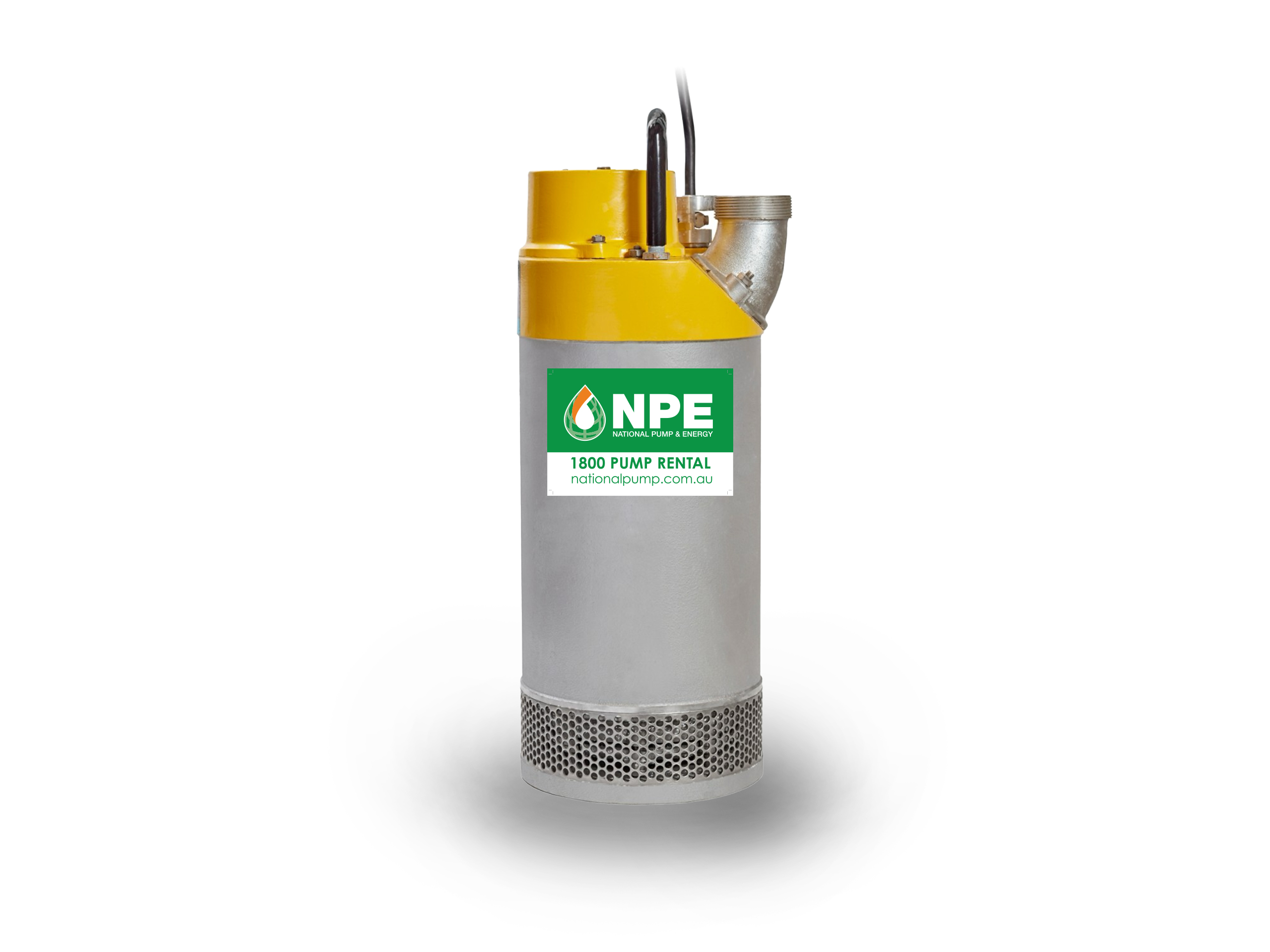

| Pump Specification Data Installation | WEDA D50 Portable Drainage pump |
| Pump Specification Data Discharge connection | WEDA D50 4” std for WEDA D50N, hose, ISO-G or NPT thread. 3” std for WEDA D50H, hose, ISO-G or NPT thread |

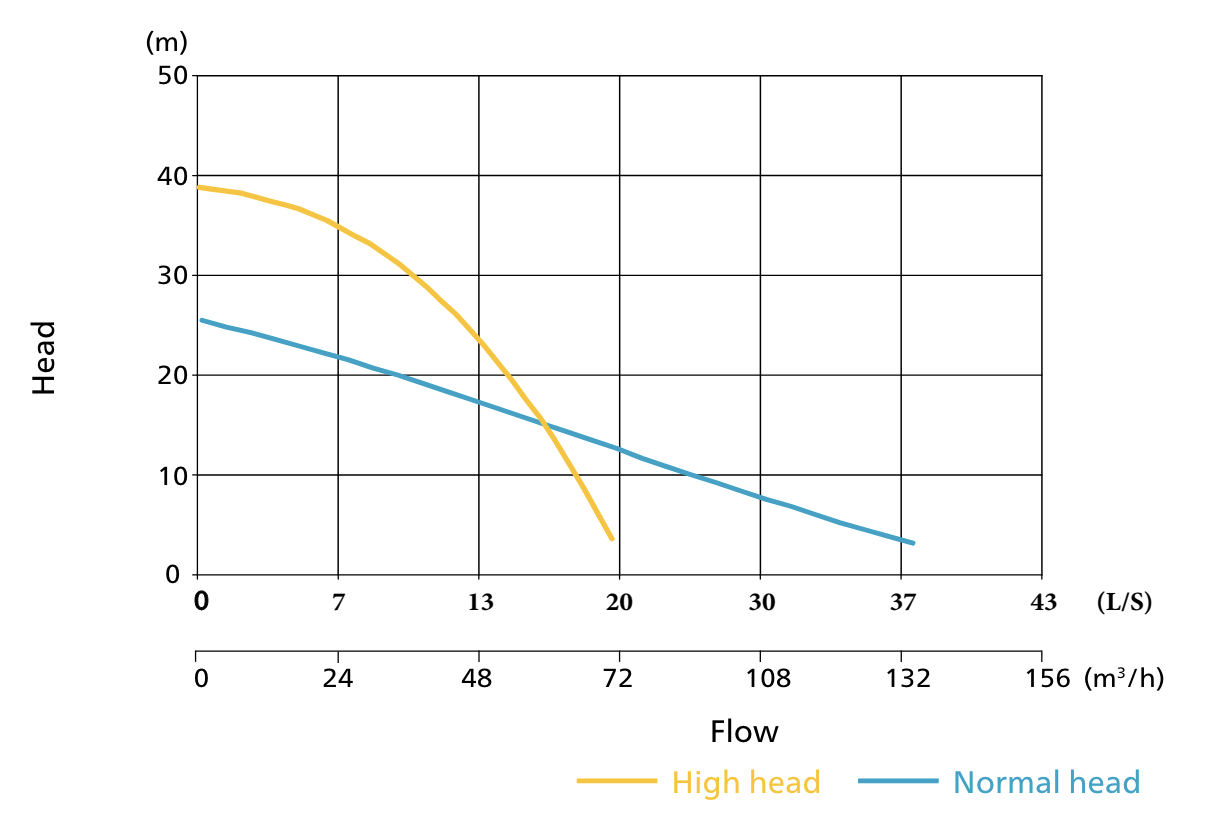

| Pump Specification Data Hydralic range | WEDA D50 N - Normal Head. H - High Head |
| Pump Specification Data Solid handling | WEDA D50 Strainer hole dimension 8 mm |
| Pump Specification Data Liquid Temperature | WEDA D50 max 40°C (104°F), standard |
| Pump Specification Data Depth of immersion | WEDA D50 max 20 m (65 feet) |
| Pump Specification Data Liquid density | WEDA D50 1100 kg/m3 (9.2 lb. per US gal.) |
| Pump Specification Data pH of the pumped liquid | WEDA D50 pH 5–8 |
| Pump Specification Data Frequency | WEDA D50 50 Hz |
| Pump Specification Data Insulation class | WEDA D50 Class F (+155C), IEC 85 |
| Pump Specification Data Protection class | WEDA D50 IP68 |
| Pump Specification Data Voltage variation | WEDA D50 max ± 5% of nominal voltage |
| Pump Specification Data Voltage imbalance | WEDA D50 max 2% - between phases |
| Pump Specification Data Max start stop | WEDA D50 max 30 - No. of starts/hour |
| Pump Specification Data Thermal contacts | WEDA D50 140°C (284°F) |
| Pump Specification Data Cable | WEDA D50 Oil and wear resistant rubber cable type HO7RN-F |
| Pump Specification Data Cable | WEDA D50 230V, 20m 4G4mm² |
| Pump Specification Data Cable | WEDA D50 400V, 20m 7G2,5mm², 4G2,5mm² |
| Pump Specification Data Cable | WEDA D50 500V, 20m 4G2,5mm² |
| Pump Specification Data Outer casing | WEDA D50 Aluminium |
| Pump Specification Data Impeller | WEDA D50 Cr-alloyed white cast iron, 55±5 HRC |
| Pump Specification Data Wear parts | WEDA D50 Nitrile rubber |
| Pump Specification Data Stator housing | WEDA D50 Aluminum |
| Pump Specification Data Strainer | WEDA D50 Stainless steel |
| Pump Specification Data Shaft | WEDA D50 Stainless steel |
| Pump Specification Data O-rings | WEDA D50 Nitrile rubber |
| Pump Specification Data Discharge connection | WEDA D50 Aluminum |
| Pump Specification Data Bearings | WEDA D50 Double-row ball bearing with C3 clearance |
| Pump Specification Data Mechanical seal | WEDA D50 Instant Service Pack contains below in an oil bath |
| Pump Specification Data Mechanical seal | WEDA D50 Primary seal: Silicon carbide against silicon carbide |
| Pump Specification Data Mechanical seal | WEDA D50 Secondary seal: Silicon carbide against silicon carbide |
| Pump Specification Data Quick couplings | WEDA D50 Secondary seal: Silicon carbide against silicon carbide |
| Pump Specification Data Start type | WEDA D50 Built-in contactor with rotation control for DOL start, Softstarter on demand |
| Pump Specification Data Accessories | WEDA D50 Float switch |
| Pump Specification Data Accessories | WEDA D50 Zinc anodes |
| Pump Specification Data Accessories | WEDA D50 Epoxy coating |
| Pump Dimensions | Unit | Low Head | High Head |
|---|---|---|---|
| Pump Dimensions Weight (Excl. Cable) | Unit Kg | Low Head 55 | High Head 55 |
| Pump Dimensions Height | Unit mm | Low Head 720 | High Head 720 |
| Pump Dimensions Width | Unit mm | Low Head 330 | High Head 302 |
| Pump Dimensions Diameter | Unit mm | Low Head 278 | High Head 278 |
