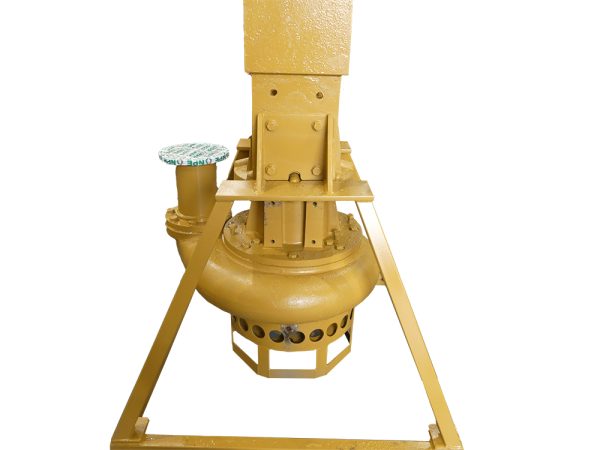

HY85A-B Hydraulic Submersible Pump Dragflow

HY85A-B Hydraulic Submersible Pump Dragflow

FLOW RATE
117L/S

Max Head
22-30m

Download Spec Sheet
Dragflow-HY85A-B-Submersible-Slurry-Hydraulic-Pump (02)
Pump Specifications
ModelAB
Capacity200-240 m3/h350-420 m3/h
Head22-30m16-23m
Weight700kg730kg
Cross Section60mm60mm
Impeller3 Vanes Closed / 440mm3 Vanes Closed / 440mm
Bore150mm150mm
Engine Specifications
Speed980-1180RPM980-1180RPM
Output44-62kW (60-85HP)44-62kW (60-85HP)
Need of Oil106-103L/Min106-103L/Min
Oil Pressure250-300 Bar250-300 Bar
Motor Displacement108cc108cc
