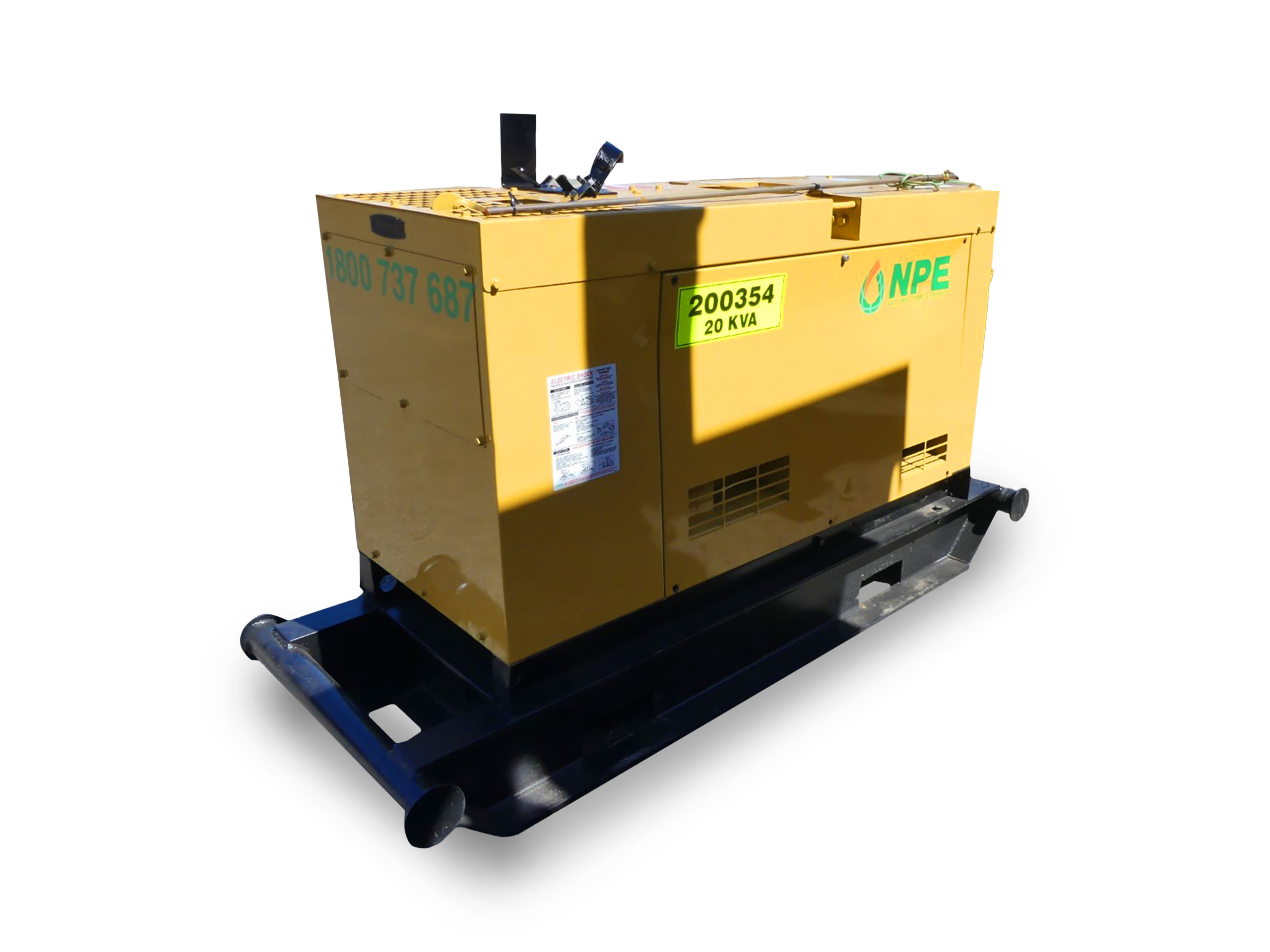

The DCA series generators are complete, stand alone generating sets. All models consist of an alternator which is directly coupled to a diesel engine. The alternator and engine are set on a common skid base. Special Vibration isolators are used to minimize vibrations during operation. The generator and electrical components are fully enclosed in a solid steel, weatherproof canopy. Noise suppression is achieved by using highly effective sound insulation materials.
Generator Specifications | |
---|---|
Frequency | 50Hz |
Output Continous/Standby | 20/22kVA |
Rotating Speed | 1500RPM |
No. of Phases | Three Phase 4 Wire |
Rated Voltage | 380/440 |
Power Factor | 0.8 |
Voltage Regulation | 1.50% |
Excitation | Brushless, Rotating Exciter with AVR |
Insulation | Class F |
Engine Specifications | |
---|---|
Make & Model | Kubota V2203-EB |
Type | Inlined, Swirl Chambered |
Output Rating | 25.0/1500PS/RPM |
18.4/1500 KW/Min-1 | |
No. of Cylinders-Bore X Stroke | 4 - 87 x 92.4mm |
Piston Displacement | 2.197L |
Fuel | Diesel |
Fuel Consumption | 3.9L/H |
Lube Oil Sump Cap | 7.6L |
Coolant Capacity | 7.9L |
Battery Capacity | 12 - 60x1pc |
Fuel Tank Capacity | 62L |
