Atlas Copco QAC TwinPowerTM generators
Double the flexibility Twice the power
We understand your need for power; but, do your power needs ever change? The QAC TwinPowerTM is a 20-foot containerized generator with two power packs, making it perfect for applications that have variable power needs, whether that’s due to the time of day or the current usage requirements.
Fully loaded, the QAC TwinPowerTM solves load low issues and reduces fuel consumption and CO2 emissions up to 40% on variable load applications, thanks to the centralized control panel with an integrated Power Manager System that switches on/off the two power packs according to the load required.
The new QAC 1350 TwinPowerTM is Stage V compliant and provides an environmentally friendly way to power operations, with nitrogen oxide (NOx) emissions reduced by 80%.
With the two power packs in one platform, you have the flexibility you need. The QAC TwinPowerTM can be used as a single unit, two different ones, prime and standby in the same box, one unit working at 50Hz and the other at 60Hz.
Key benefits of QAC TwinPowerTM

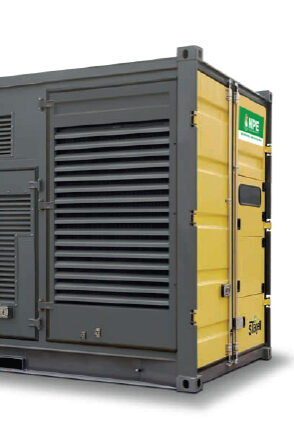

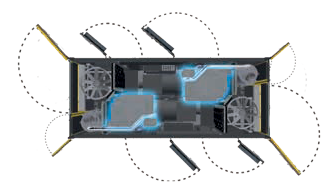

The QAC TwinPowerTM is a 20 ft ISO containerised unit housing two compact generators. This configuration, with its fast-paralleling system, allows the two generators to work independently or in parallel with each other , providing multiple solutions and combinations between prime and standby use.
OPTIMIZED FUEL AUTONOMY AND LOW NOISE LEVELS
The centralized parallel package will switch off and on the power packs. When used on a variable load, the QAC TwinPower consumes up to 40 percent less fuel than single-engine solutions.
The QAC TwinPower are very compact generators with the additional benefit of variable speed fans, delivering hardly any noise.
OPTIMIZED FUEL AUTONOMY AND LOW NOISE LEVELS
The centralized parallel package will switch off and on the power packs. When used on a variable load, the QAC TwinPower consumes up to 40 percent less fuel than single-engine solutions.
The QAC TwinPower are very compact generators with the additional benefit of variable speed fans, delivering hardly any noise.
24/7 POWER AVAILABILITY
The service requirement is less than 2 hours of maintenance for every 500 hours of operation.
Due to the TwinPower™ concept, it is possible to still benefit from 50% of the unit’s total capacity during maintenance operations.
EXCELLENT PERFORMANCE
Outstanding power density up to 1450 kVA in an ISO20 container QAC 1350 TwinPowerTM Stage V compliant and EPA T4F 50/60Hz with SCR Standard spark arrestor.
CENTRALIZED PARALLEL PACKAGE

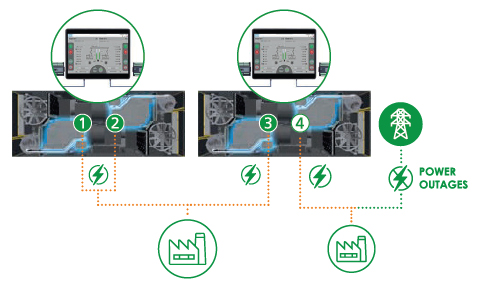

To tackle even bigger jobs, the QAC TwinPowerTM has two dedicated Atlas Copco controllers Qc4004, including touchscreen Qd1001 functionality, so you can easily parallel with other generators. You have the choice of island mode or PMS (Power Management System). Each generator can run in parallel with mains, peak shaving, mains power export/import, fixed power, and AMF (Automatic Mains Failure).
SUPERIOR POWER CONNECTIVITY
QAC TwinPower offers a single bus bar easy convertible into double bus bar in case you need to power two completely different loads (even with different frequency).
Additionally, the optional Power Lock panel 6 Rows of 660 Amps with overcurrent protection will ensure express connectivity when needed.
ENVIRONMENTALLY FRIENDLY
The spillage free frame reduces any potential environmental impact.
It can contain 110% of the fuel tank capacity.

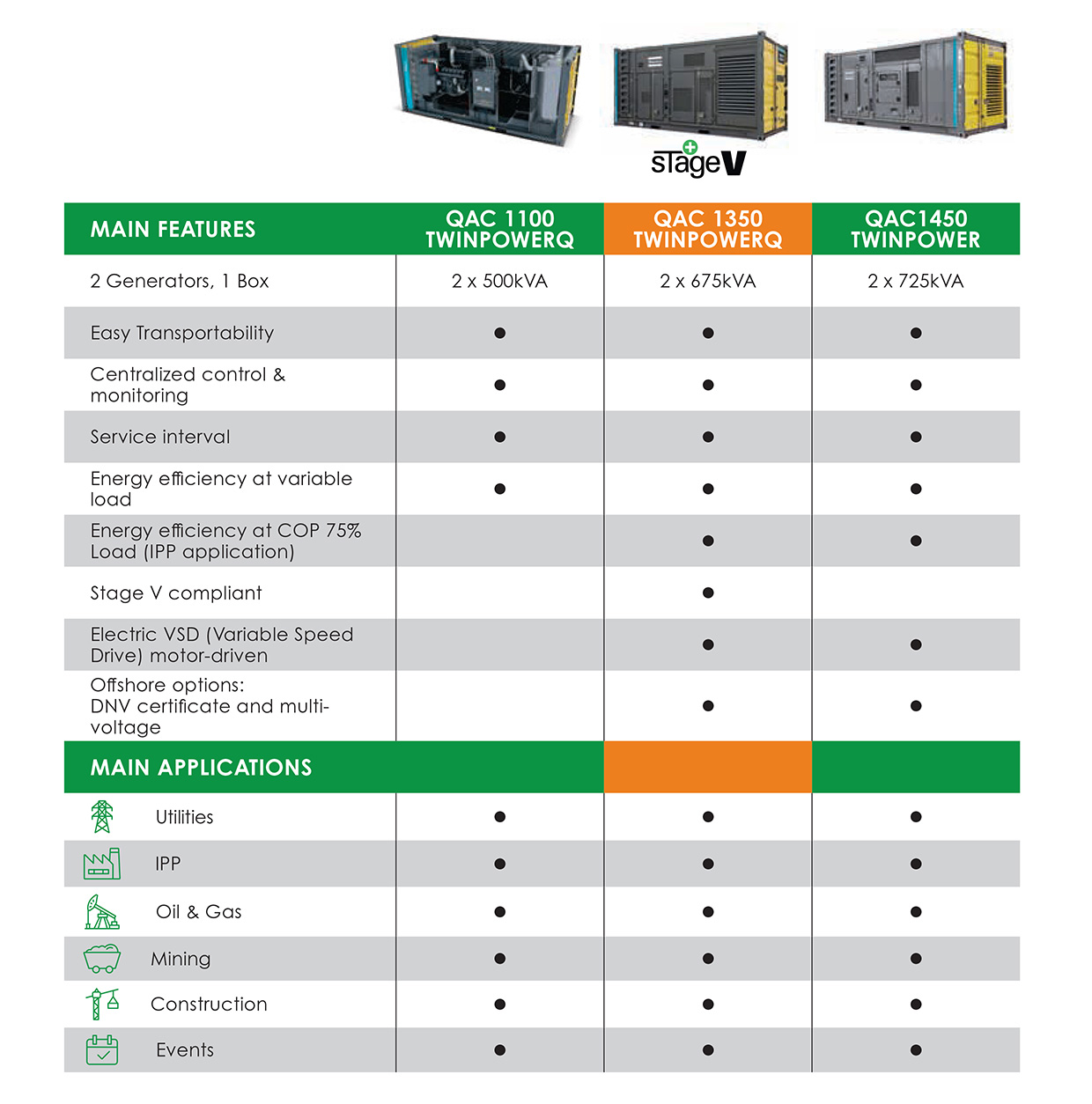

CHOOSE THE TWINPOWERTM THAT BEST FITS YOUR NEEDS
FOR MORE TECHNICAL INFORMATION CLICK THE LINKS BELOW

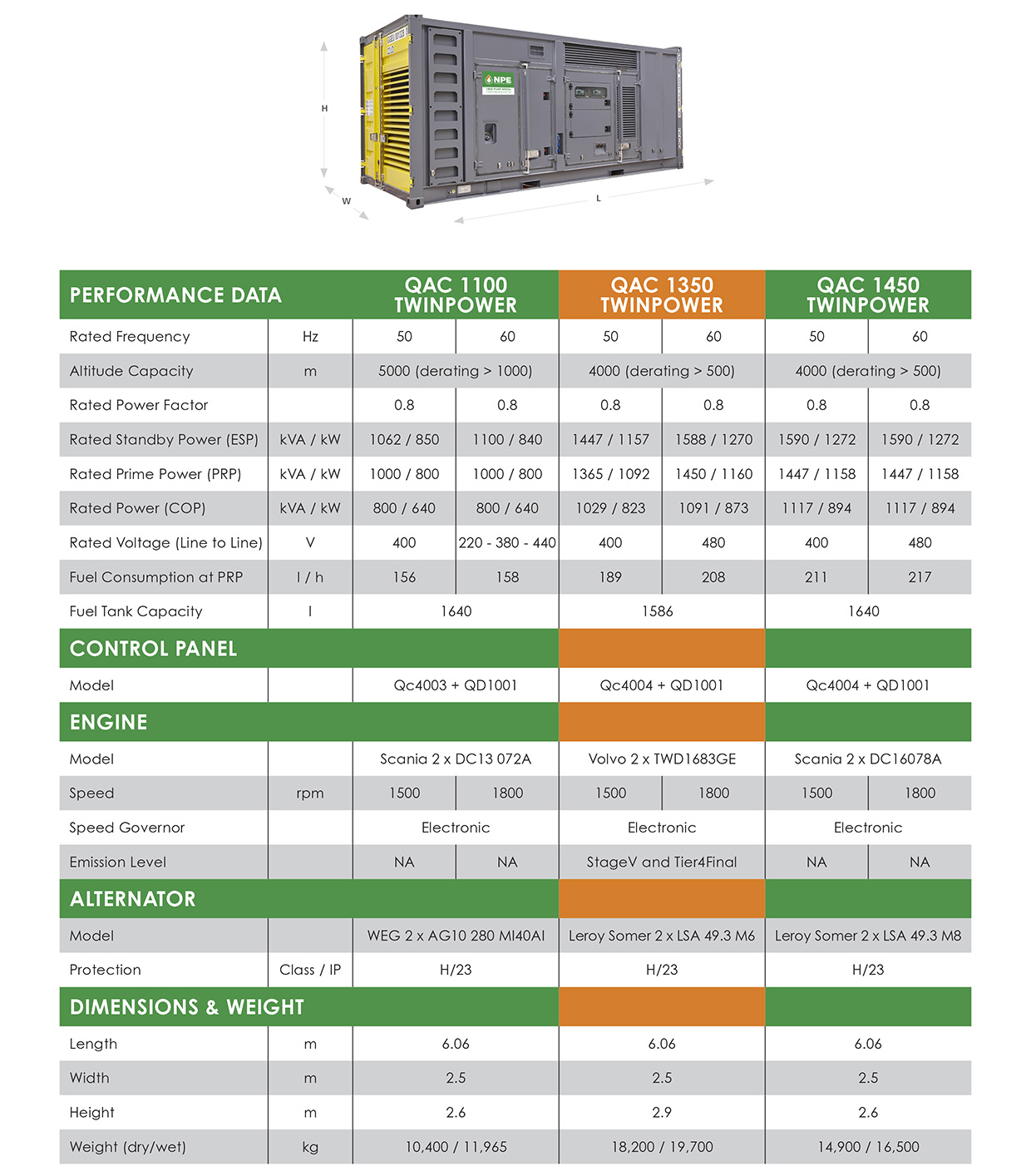

TECHNICAL DATA
